Undetermined dimension fuel gas piping systems using Corrugated stainless steel

Introduction:

Gas pipe and gas project are regarded as a foundation project one of the symbol of modern metropolis. As new type of fuel, gas has a promising future of development in both civil and business fields. The gas Transportation from West to East of China also indicate that in the future, gas pipe will become the primary way for resources application in modern cities. As danger of gas, it is of hidden hazard and very complicated installation with former traditional method and material. To resolve the problems which conditioned the development progress of metropolitan piped gas, our company developed the flexible metal tube for piped gas by references of advanced international production techniques.

The flexible metal tube for gas has features of ensuring safety and easy to install as well as good appearance.

  1. ,The body of the tube is made of high quality material of stainless steel with over 20 years of technical maturation. The body has been flexible with intensified inner structure by high temperature process.
  2. The body has been covered with anti-ignited material which can protect the body and insulating. So it is easy to be installed underground or in the wall.
  3. The body is made of thin-wall stainless steel. It can be of over 60 meters length continuously. Therefore, it is convenient for transportation and cut according to the requirements during installation and avoids the waste as well.
  4. The flexible stainless steel gas pipe has been used widely in China and most western countries. The most important for the client point is from the beginning to the last kilometer of installation of gas piping. We will provide you high-quality, safety, fine-appearance. Convenient reasonable and advanced techniques products.


Application : Gas Supply


             \

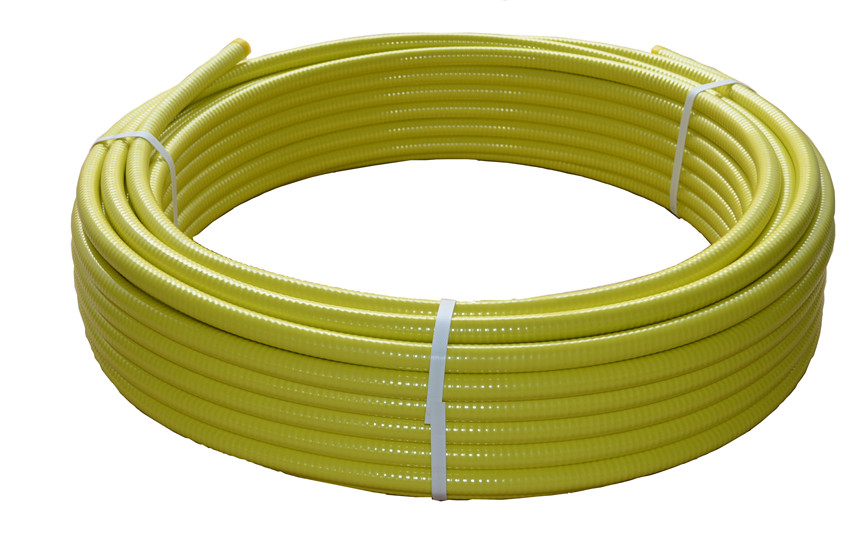

Description: Coil length 20,30,50,60 meters per roll

· PVC or PE UV resistant jacketing,PE jacketing can put under ground and inwall ,jacketing thickness is 0.5mm or 2mm,other jacketing thickness is available upon customer's require.

· Jacketing Color is greyish white or Yellow,other color is available upon customer's require

The following dimensions are available:

1/2"

3/4" 1" 5/4"

DN 12

DN 16 DN 20 DN 25
· Assembly  Item & Material

No.
Item
Material
1
Nut Brass
2
Metal Hose
SUS304,SUS316L
3

Gasket

NBR/EPDM/350℃ High-temperature resistance seal
4

Cir-Clip

Stainless Steel

·Specification
DN

φID
mm

δ
mm

meters per Coil
Bending Radius mm
Maximum Applicable Pressure kgf/cm2
Burst Pressure
kgf/cm2
DN12
12
16
60
30
17.5
200
DN16
16
20
60
50
15
200
DN20
20
25
60
60
12
200
DN25
27
32
30
80
10
120
