| Introduction: |

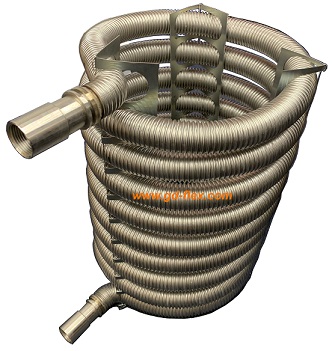

GD-FLEX heat exchangers are made by the high quality SUS316L corrugated stainless steel tubes ,
it have advantages in terms of performance,operating,efficiency,installation and service life.
The flexible stainless steel hose having the high heat exchange performance is decided by
its design. The thin-walled and flexible hoses are extremely sturdy and have an enlarged surface
for the heat exchange due to their corrugation profile.
it is produced by customer design and requirement, it is a customized products.
| Advantages: |
More performance in less space
Compared to conventional, smooth tube designed models, the CSST tubes
have significantly enlarged surface ,
50 % more performance and high efficiency. CSST exchangers is high-performance,
compact and light ,which can be installed even in very confined spaces.
Temperature Transfer
Due to the optimized flow, the corrugations induce turbulence within the hose,
which results in a higher heat transfer rate compared to a smooth tube of the same length.
In contrast to laminar flow, mixing of the temperature layers occurs and the flow velocity
decreases in the middle of the hose. Both effects significantly increase the heat exchange
performance.
Targeted turbulence to prevent deposits
Targeted turbulence is generated by the corrugated profile, which mixes the flowing
medium evenly. Calcium deposits are thus prevented, resulting in stable performance
over the entire service life.
Customized Service
As a manufacturer, we are able to design and manufacture coils as a system according
to customer-specific designs and requirement.
The heat exchangers are available in a choice of lengths and can be equipped with
metal or plastic housings as well as a variety of connections. |
|
|
Features
High quality SUS316L material
All corrugated tube has 1050° C high temperature annealing heat treatment
Food grade
Inner and outer tube wall is bright,No oil left,no pollution.
Heat exchanger coil length upon customer design requirement, Max to 250meters
|
|
Application
Boiler heat exchanger
Solar water tank heat exchanger
Heat pump water tank heat exchanger
Cooling heat exchanger
|
Assembly Fitting & Material
1 Non-welding Brass/SUS Female Nut or Brass/SUS Male double nipple
2 Welding SUS304/SUS316L stainless steel fitting(Male, Female or Smooth straight tube
upon customer design requirement)
|

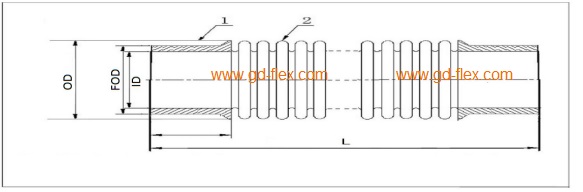

| Specification |
| DN |
CSST φID
mm
|
CSST δOD
mm
|
CSST Wall Thickness
mm |
Welded Fittings Size
|
|
DN12
|
12
|
16/16.8
|
0.25/0.3 |
1/2"，3/4" （other size also available）
|
|
DN16
|
16
|
20/21.3
|
0.25/0.3 |
1/2"，3/4" （other size also available）
|
|
DN20
|
20
|
25/26
|
0.3 |
3/4"Male, 3/4Female, Φ22mm pipe,（other size also available）
|
|
DN25
|
26
|
32
|
0.3 |
1"Male,3/4Female,Φ28mm pipe, other size（other size also available）
|
|
DN32
|
32
|
40
|
0.3 |
1.1/4"Male,1” Female, Φ28mm/Φ35mm pipe, （other size also available）
|
|
DN40
|
40
|
50
|
0.35 |
1.1/2"Male, 1.1/4” Female, (other size also available）
|
|
DN50
|
50
|
62
|
0.35/0.4 |
2"Male, 1.1/2” Female, (other size also available）
|
|
